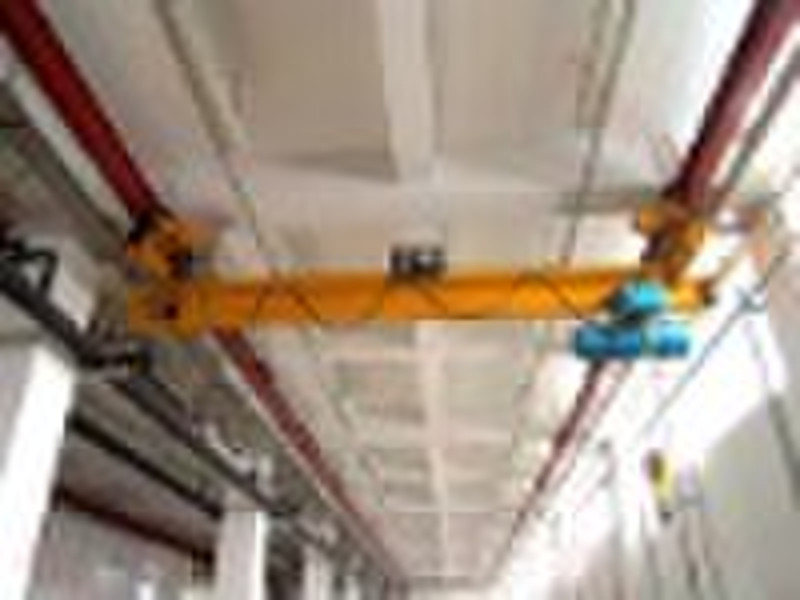

LX Suspension type EOT crane

Detailed Product Description EOT crane Lx suspension type Lifting capacity: 0.5-5ton Span: 3- 16m Match CD1/MD1 type hoist. EOTCrane Lx Suspension type LX Single girder SuspensionEOT Crane , match with CD1 and MD1 type Electric Wire rope hoist, to compose the light and small lifing equipment, which mainly use in the machine manufacture, assembling plants, storage house and tunnel etc. The travel rail adopt I rail, with medium working duty, the popular model with 0.5t, 1t, 2t, 3t and 5t, the lifting span from 3m to 16m, working temperature -20 degree to 40 degree, operate method adopt the ground suspend handle or the remote control. This model crane not suitable to work in the burnable and explosible medium or in places have high humidity and acid, alkali gases, nor suitable to lift and transport melted metals, poisions and burnable materials. Electrical elements: The crane we produced is designed to meet the requirement stated in your specification, as well as for the operation conditions. The sub-assemblies used by are standardized equipment of renowned manufactures and have been approved for specific crane operation by our test laboratory. Their characteristics regarding impact, vibrations, wear and safety were examined, a continuous high quality standard is ensured by series production and standardized sub-assemblies. The electrical equipment is accommodated in robust steel plate control cubicles. All movement can be switched off by actuating the emergency-off switch at the control station via a main contactor. The entire equipment is easy to install and dismantle due to the use of threaded bolts and top-hat rails. Cable inlet from the cable gland Power supply cable and control cable along the girder. According to the different application, the hoists can be used in combination with the explosion—proof single beam crane mode BQ and the explosion—proof single beam suspension crane mode BX. LX Single Girder Suspension EOT Crane Lifting capacity (ton) 0.5, 1, 2, 35Span (m)3- 163-16Crane Travelling DeviceTravelling speed (m/min)20302030Reducer ratio28.22030.421.6MotorZDY21-4, 2x0.4Kw, 1380r/min ZDY112-4, 2x0.8kw, 1380r/min Lifting device(Electric hoist)And hoist travelling deviceElectric Hoist modelCD1/ MD1Lifting speed (m/min)8, 0.8/8Lifting height (m)6, 9, 12, 18, 24, 30Travelling speed (m/min)20; (30)MotorTaper Squirrel-cage typeWork dutyMiddle grade, JC=25%Power supply380V, 50Hz, 3-PhaseWheel Diameter130mm150mmRail Surface width37- 70mmUsers in the order or signed contract, must be the basic parameters of the machine (rated from the weight of hoisting height, the effective radius, etc.) clearly described in welcome to online consultation, if necessary or E-mail it to us, you will receive our prompt and careful reply!
