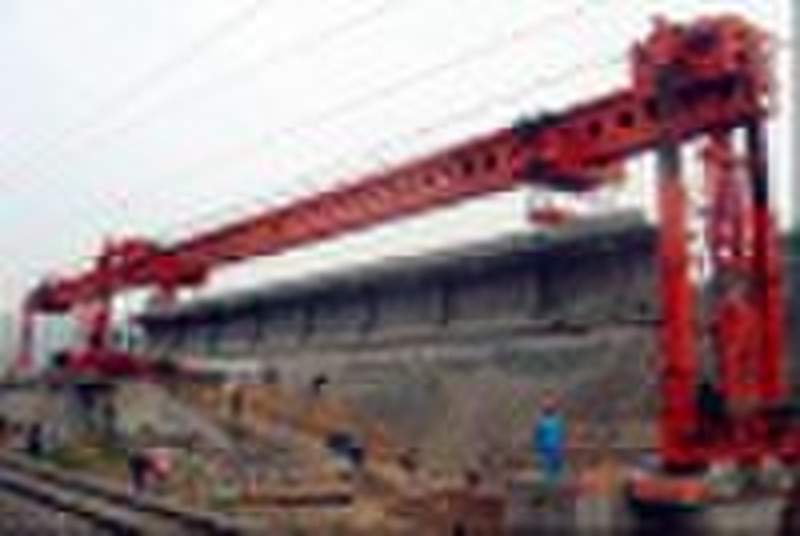

Highway and railway bridge crane

GJ 180t the hoist crane uses in erecting the highway bridge 40 meter and the following span; Railroad Liang 32 meter and following span prestressed rinforcement concretes Liang piece. This machine is the single arm simple support, can realize the entire machinery to move to the Liang piece horizontally, achieves one time falls Liang to arrive, in the same profession, has the structure to be simple, weight light, safe reliable, one machine multipurpose, automatic routine high transportation convenient characteristic. This set of bridges use in erecting 32m railroad Liang, fixed hoisting capacity 180t, (erects the 40m highway bridge to increase part installment, like guides Liang and so on). Technical parameters1. the rated capacity: 180t2. Suitable for bridge span :Railroad bridge≤32m,Highway bridge≤40m3.Suitable bridge: Straight bridge,Curve bridge4. Slings the bridge lifting speed:≤0.6m/min5. Slings the bridge vertical to move to the speed: 5m/min6. The king post moves to the distance horizontally:About each 750mm7. Suitable slope:≤30%8. Erects the bridge speed:1 piece/h9. Complete machine power:142KW10. Maximumsize long*wide*high:58.4m*4.1m*7.9m
